NJP-260 Automatic liquid capsule filling liquid machine

Unit Price:	39000~43000 USD
Min. Order:	1 Set/Sets

Packaging:	Wooden Case
Brand:	GRAND
Transportation:	Express,Ocean,Land,Air
Place of Origin:	CHINA
Supply Ability:	1000sets/month
Certificate:	CE ISO
Port:	Shanghai/Ningbo

Basic Info

Model No.: NJP-260

Product Description

Liquid Capsule Filling Sealing Machine > NJP-Series Liquid Capsule Filling Machine > NJP-260 Automatic liquid capsule filling liquid machine

Product Description

NJP-260
Liquid automatic capsule filling machine, imported liquid pump and servo feed system and the closed die wheel design, ensure the filling quantity difference, measuring precision, control within the ±3%. It can pack oily liquid, solution, suspension liquid or paste, etc. This machine adopts automatic frequency control of motor speed, convenient and intuitive operation. The machine as the new century a new convenient dosing filling way and the idea, is the ideal equipment in the pharmaceutical, food, health care products industry.

NSF-600

It can complete sizing treatment and sealing treatment for hard capsule and hard capsule filled with liquid, enable internally package drugs to always be in sealing status in process of packaging, storing, transport and sales and thus improve stability of capsules and safety of medicine taking. In today when medicines anti-counterfeiting technologies are rapidly changed, such capsule sealing and packaging technology will re-promote medicines anti-counterfeiting technologies to a new height. With development and maturity of domestic and foreign hard capsule filled with liquid filling technologies, liquid capsule production technologies have gradually replaced high-cost soft capsule production technologies. Success for research and development of hard capsule sizing treatment sealing machine has completely solved long-term existed such technical difficulty as sealing of liquid capsule and meanwhile, it has greatly met vast pharmaceutical enterprises' higher requirements for medium and high ends of hard capsule preparations in terms sealing, quality assurance and anti-counterfeiting.

Product Paramenters

Model	NJP-260
Production speed	260 Pcs/min
Motor Power	5.75KW
Capsule Size	00#-5#, secure capsule A-E
Vacuum Degree	-0.02 ~ -0.06 MPa
Air Pressure	0.06m3/min 0.3MPa
Good Filling Rate	≥99.5%
Total Power	380V 50Hz 3.8 kw (customized available)
Inner Diameter of Inlet Tube	20mm
Inner Diameter of Outlet Tube	27mm
Source of Water	Water-ring vacuum pump matching with water tank to recycle the water, or using external water
Control System	Stepless frequency converter, PLC control
Noise Index.	Less than 75dBA
Machine Dimension	10208601970mm
Machine Weight	900KG

Model	NSF-600
Range of Application	0#,1#,2#,3#
Production Efficiency	40, 000 Granules/Hour (Water-soluble Sealing Materials) ≤ 50, 000 Granules/Hour (Non-water-soluble Sealing Materials)
Rated Power	2KW
Power Supply	220/50HZ
Temperature of Water-soluble Glue Solution	30ºC-40ºC
Environmental Requirements	Around 25ºC and Humidity of 45%-75%
Weight	1000KG
Dimensions	2000×700×1650mm

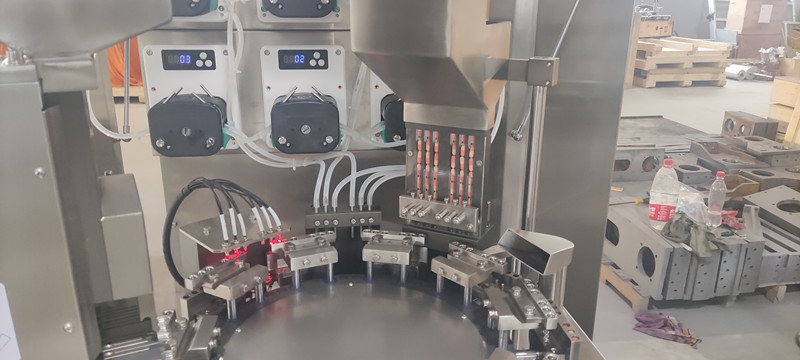

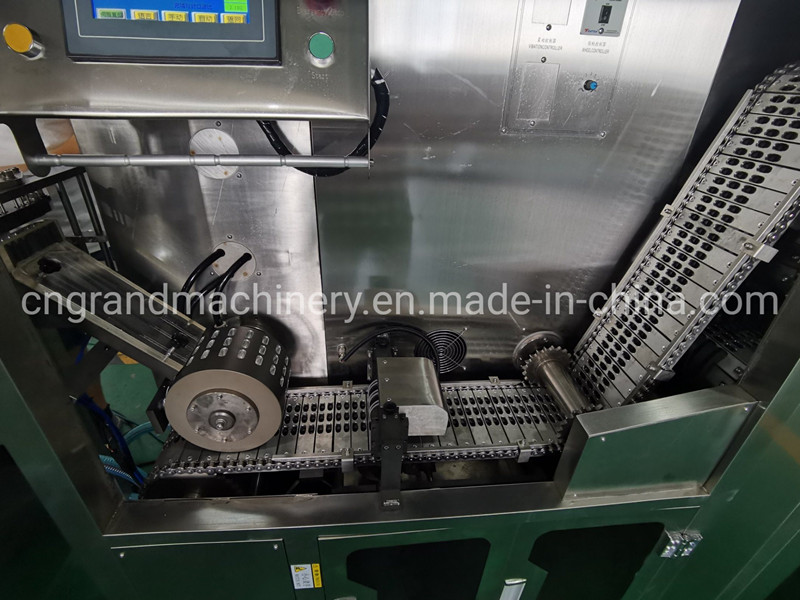

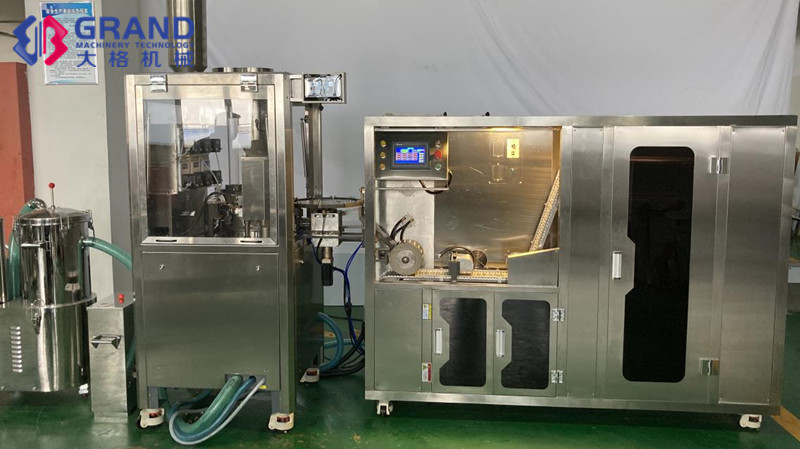

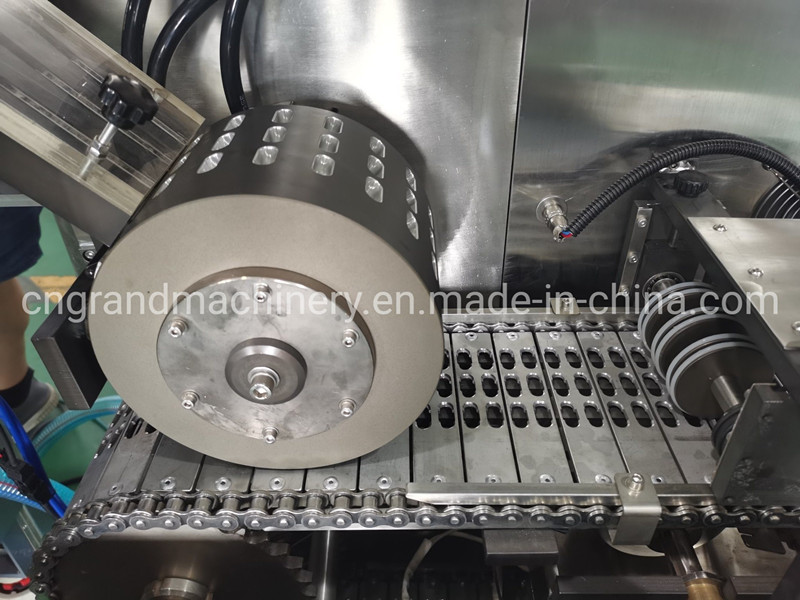

Product Detail Pictures

Company Profile

Wenzhou Grand Machinery

Wenzhou Grand Machinery Technology Co., ltd. was established in 1999 by several experienced machinery experts, located in Wenzhou City, Zhejiang Province, China. Grand is specialized in R&D, manufacturing, exporting and providing related services of pharmaceutical equipment in solid preparation field. Main products include grinder, granulator, dryer, mixer, capsule filling machine, tablet press, blister packing machine, bottle filling line, cartooning and encasing machine.

Grand has over 5,000 meters standard producing plant and modern office, with more than 85 staff consisting of efficient producing team, experienced R&D team, professional sales team and thoughtful after sale team.

Grand has passed the certification of ISO9001 and products have CE certification approved.

Certifications

Packaging and Shipping

After Sales Service

Service1: We will take the professional videos for machine installation, operation and mould changing at our cost. This is unique service of us and ensures you the best machine running in the future.

Service2: We will dispatch engineers to your site for machine installation and commissioning, and also do the training for your technicians.

Service3: We make guarantee of the machine for 12 months. During this warranty period, the seller will provide free spare parts that caused by the machine's quality within 10 days by fast courier upon receipt of buy's notice. we will also provide one set of spare parts/wear & tear parts to customer along with the shipment of the machine.

Service4: We warmly welcome the suggestions from customer to make us grow better and produce better machine along with providing better service to customer, and create more value for customer.

FAQ

Q1: What is your capability?
Grand Machinery is a manufacturer of pharm and packing equipment. Qualified & high-level machines and packing solution & technology are our strengths over our competitors

Q2: How do you guarantee your quality and service?
We have serious QC team to control the details from the small parts to the assembled machine. And our service and technical team are glad to answer and solve all problems if you meet during using our products.

Q3: What is your WARRANTY?
One year warranty for the brand-new machine, and whole life after sale service, eg. spare parts, technical support etc.

Q4: How to pay? (Payment term)
T/T, L/C, PayPal, Western Union, Cash even credit Card are all accepted

Q5: How long could you finish the machine after placing the order? (Delivery time)
Normally: 15-30 days, if for stock products, it will be around 3 days.

Q6: Do you mind if we are agents?
End users and agents are both welcome. And now we are recruiting Global Agents/Wholesalers!!!
Join Grand Machinery & Discover More

Q7: More questions are appreciated
Pls contact us freely if you have any other question or need.

Wenzhou Grand Machinery Technology Co., Ltd.

Wenzhou Grand Machinery Technology Co., Ltd. was established in 1999 by several experienced machinery experts, located in Wenzhou City, Zhejiang Province, China. Grand is specialized in R&D, manufacturing, exporting and providing related services of equipment in Liquid and Cream field. Main products include Bottle Liquid Filling Sealing Machine, Bag Liquid Filling Sealing Machine, Liquid Blister Filling and Sealing Machine, Tube Filling Sealing Machine, Liquid Capsule Filling Sealing Machine, Cartooning and encasing machine. Grand has over 5,000 meters standard producing plant and modern office, with more than 85 staff consisting of efficient producing team, experienced R&D team, professional sales team and thoughtful after sale team. Grand has passed the certification of ISO9001 and products have CE certification approved. Grand provides reliable quality, stable performance and thoughtful after-sales service, which attracted large number of customers covering more than 160 countries, such as, China domestic, Asia, Europe, America, Mid East and Africa. Our growth is inseparable from the trust and support of our customers. You are always welcome to our company for plant visitation, technology exchange and business cooperation.

Company Info

Company Name: Wenzhou Grand Machinery Technology Co., Ltd.
Representative: Qiguo Chen
Product/Service: Liquid Filling Sealing Machine , Liquid Blister Packing Machine , Liquid Capsule Filling Machine , Tube Filling Machine , Liquid Bottle Filling Machine , Cartoning Machine
Capital (Million US $): 50,000
Year Established: 1999
Total Annual Sales Volume (Million US $): US$10 Million - US$50 Million
Export Percentage: 91% - 100%
Total Annual Purchase Volume (Million US $): US$5 Million - US$10 Million
No. of Production Lines: 10
No. of R&D Staff: 11 -20 People
No. of QC Staff: 11 -20 People
OEM Services Provided: yes
Factory Size (Sq.meters): 5,000-10,000 square meters
Factory Location: No.555, Hongjin Road Feiyun Street, Ruian 325207, Wenzhou City, Zhejiang Province, China
Contact Person: Mr. Tony Tao
Tel: +86-577-65565288
